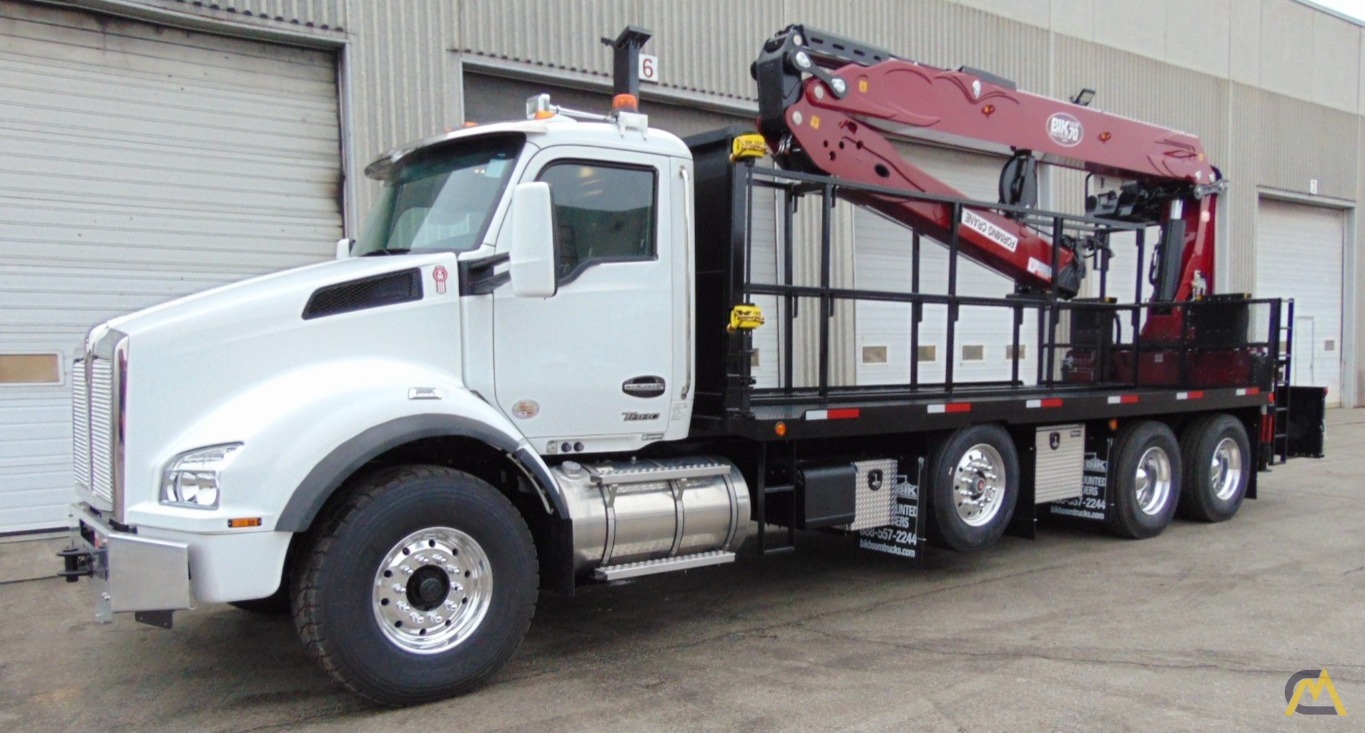

BIK SERIES FC-70 Forming Crane on Kenworth T880 For Sale

Boom Details

NEW – BIK SERIES FORMING CRANE FC-70 UNLOADER

• 4 Hyd. Extensions to 70’ Horizontal Reach rearward with reverse turret mount
• Horizontal Capacities are:
  • 10,340 lb @ 22’
  • 4,300 lb @ 45’
  • 2,600 lb @ 60’
  • 2,250 lb at max reach
• Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard
• Dual Planetary Gear Drive continuous rotation for maximized slewing torque and power for extreme grades
• Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
• Extra Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type
• Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
• Hydraulic Oil Coolers, High Pressure Return Filter and min 40-gallon oil tank for boom.
• Under Deck Frame Mounted 70-Gal Aluminum Oil Tank
• DANFOSS Valve – At Top Seat Level Controls with Access Ladder/Platform
• Hydraulic Hook Rotator with T-Hook at End of Boom
• DANFOSS Valve – At Top Seat Level controls with access ladder, Hydraulic hook rotator with T-hook at end of boom
• SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord
• Crane Painted BIK Red, load chart on boom in FT. & LBS. –  Load Tested & Installed end of frame on pre-engineered subbase.

Deck Details

NEW – 22’6″ LOW PROFILE STEEL CHECKER PLATED DECK

• Installed on Pre-Engineered 6” Main Sill Sub Frame & Extension with X-Braces for Torsional Support
• Tied to Truck Frame by Sheer Plating at Front, Center and Rear
• Top welded 3” cross members
• Checker plate steel deck surface
• 66” + headboard, Removable Center Divider with 4-vertical mounted winch straps to wrap around cages for transport
• 8 – under deck sliding tie-down winch straps on passenger side
• Winch bar holder and winch bar, dual ladder access at front
• Reflectors and side lights as required by DOT standards.

Truck Details

NEW – KENWORTH T880 4-AXLE TRUCK – 86,000 lbs GVWR

• Cab White, Paccar 485 hp, 1,650 ft/lb Torque
• Jake Brake, Eaton Ultra Shift Plus 18 Spd Automated Transmission
• 20,000 lb Front Steer Axle with 425/65R22.5 Tires on Aluminum Rims
• 20,000 lb Self-Steer Pusher Axle Installed Ahead of Tandem
• 46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims
• 54” Spread at TA, Double Frame
• Options Including:  A/C, Tilt/Telescopic Steering, Power Windows & Locks, AM/FM/MP3 w/Bluetooth, Air Driver’s Seat and Standard Pass Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock-ups, Trailer Air Tow Package, Chromed Front and Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc…

Also Included:

• Two Sets of Aluminum Stabilizer Pads with Holders Mounted on Truck
• 24” Aluminum Checker Plate Storage Box, Hydraulic Rotator
• 1” Drawplate Installed at Rear
