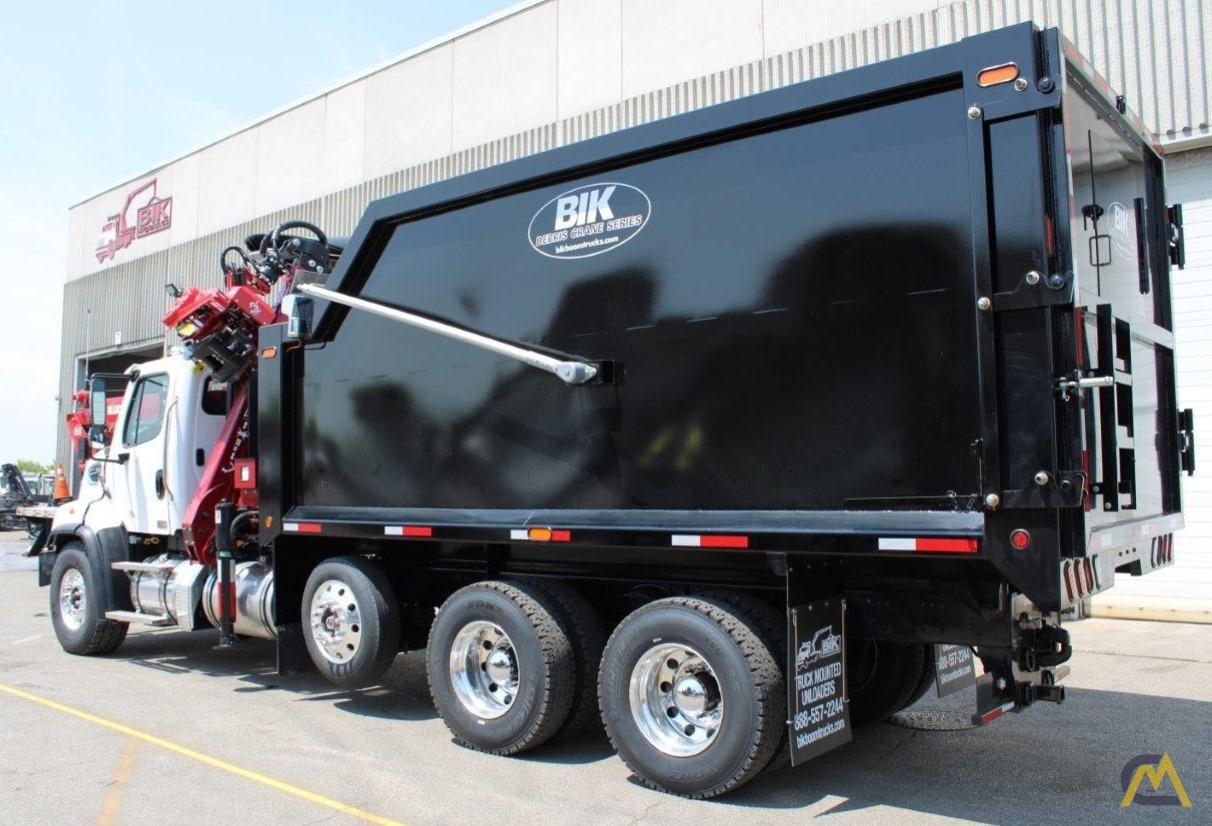

BIK ZM-18F Debris Series Knuckle Boom Crane on Freightliner 108SD For Sale

Boom Details

New – BIK “Debris-Crane” Series ZM-18F – 18 TON/M FOLDING BOOM

• Hyd Extending Main Boom with 2- hyd ext in secondary arm

  • Horizontal Capacity

    • 8,400 lbs @ 15′

    • 6,250 lbs @ 19.5′

    • 5,300 lbs @23′

    • 4,100 lbs @ 29′

    • 3,200 lbs @ 35′

• Foldable Boom in “Z” type during transport with attachment connected – with standard Debris grapple

• Telescopic Main Boom with Double Extension cylinder/chain system on the second boom, – Power Linkage system on Main Boom

• Planetary Gear (Dual) Rotation Motors & Continuous Boom Rotation – for maximized slewing torque and reliability

• High Controls from Top Seat with mechanical dual joystock and foot pedals for boom/grapple controls

• Flip-Up style Hydraulic Out & Down Stabilizers – 16’ Xtra Wide Spread, Dual sided ground level controls

• Control Panel at Top Seat to manage: Heated Seat, Truck Horn alert, Truck Engine on/off and High RPM control

• Top Seat Cover foldable “hood” over seat to shield operator from rain during operation of boom

• Carter Protection on first and second boom cylinders, Hydraulic Load Limiting Device, Boom is Factory painted Burgandy Colour

• Tandem pump / Double Circuit system for optimum speed for simultaneous multi function use

• Other Features Include: High Pressure Filters, Emergency Stop Botton, Manometer with “Traffic Light”, LED spot lights on secondary boom

• Installed at Rear on sub base, all hydraulic & electrical connections with AW46 hyd oil, Engineer Stability load tested and certified

Deck Details

New  – 18’  x 102” 70 Steel Dump Body:

• Made with AR 450 Plate 1/4” Steel, 25’ Long x 102” Wide, 8’ High; Ground to Top of Sides

• Single 3-stage telescopic dump cylinder, 3×4 x 3/8 Longsills

• 4” Heavy I–Beam Crossmembers, 2 x 4 x 1/4 Tubing Inside Body

• 45° Taper / 45° at front of Body for Loader to Swing Past,  Air operated roll tarp system

• Barn door opening at rear dump, top-rear dual sliding hatch door for chipping from rear

• Penny Lights Down Sides; Six per Side, Five Total Midturn at Bottom

• Strobes in Rear of Body, Mud Flap Brackets in Rear with Flaps, sandblasted/primed and painted gloss black

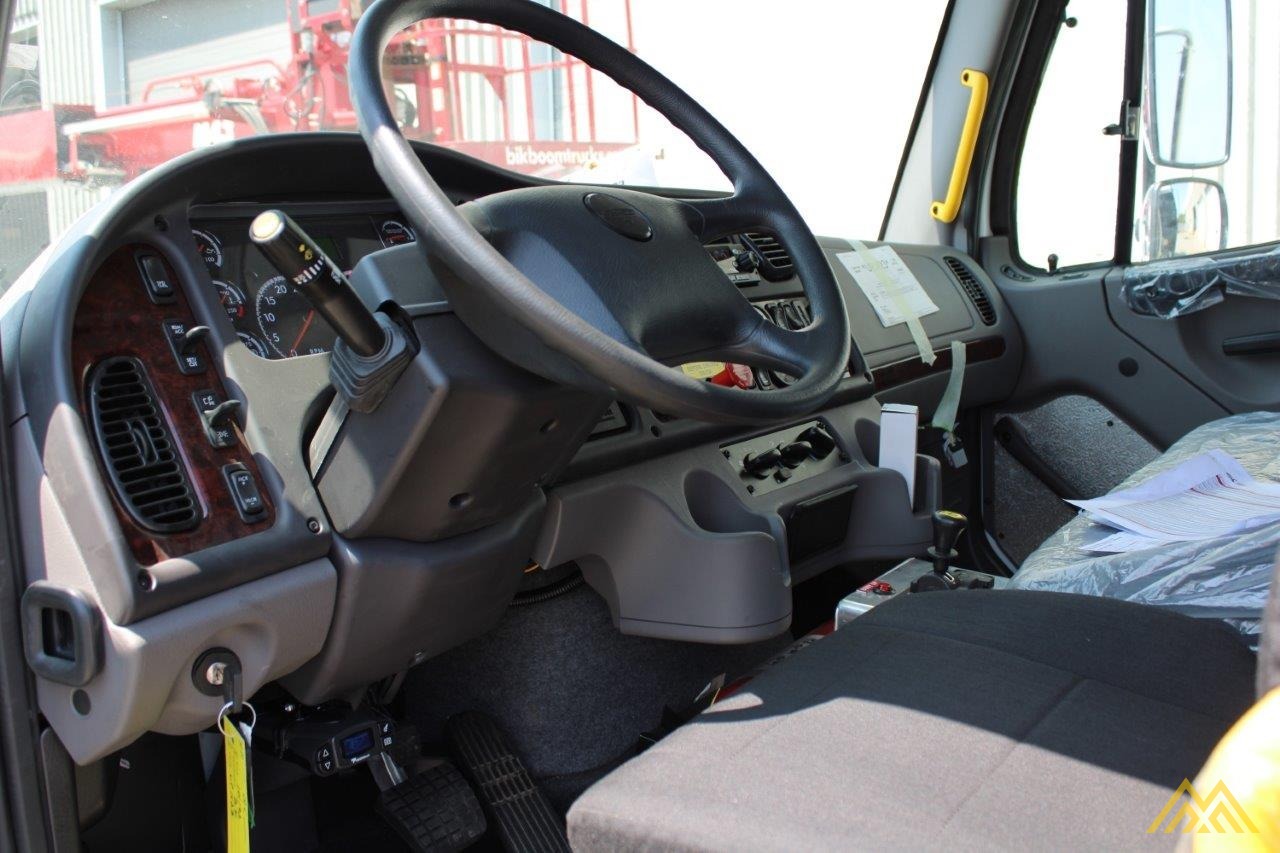

Truck Details

New – Freightliner 108SD 4- axle Diesel Truck –

• 67,000 lb GVWR

• 9L Cummins Diesel, 380 hp, Truck cab White

• Allison RDS 3000 series Automatic Trans., 20,000 lb fronts with 425/65R22.5 Front Floatation tires on  Alum rims

• 13,000 lb self steer lift axle installed ahead of t/a with low profile 17” tires/alum rims

• 40,000 LB Rears on Tuftrac Suspension with  11R22.5 tires on Aluminum rims, double frame chassis

• Truck  Features Include: Two Stage Engine Brake,  Air Cond.,  AM/FM  stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power and heated mirrors, eng block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, etc…

Also Included:

• (1) – 36” Aluminum Storage Box Installed under deck

Options at Extra Cost:

• Heavy duty pintle hook installed at rear

• (1) Additional Aluminum storage box installed

• Add (1) New Mecanil SG-280 Grapple Saw with custom quick disconnect lever portion

• Mecanil SG-280 Grapple Saw (instead of the Heiden Trash grapple included above)
