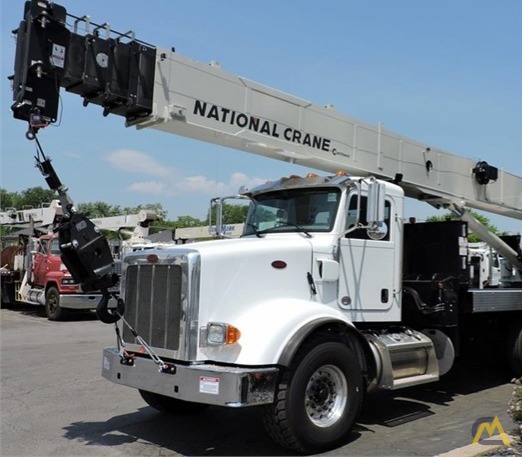

National NBT45-161 45-Ton Un-Mounted Boom Truck Crane For Sale

NATIONAL NBT45-161 STANDARD T-BOX RECOMMENDED TRUCK

The NBT40-1 series delivers full capacity lifting and a high performance aerial lift configuration for ultimate versatility and jobsite productivity.

FEATURES
FOUR OR FIVE-SECTION BOOM
Class-leading 49,1 m (161 ft) boom length on the NBT45-1 allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency. There is no need to swing the jib to reach 62,8 m (206 ft) platform-working height. Optional boom lengths of 31,39 m (103 ft) and 38,71 m (127 ft) and 43,29 m (142 ft) are also available.

ANSI/SAIA A92.2 & CSA C225 AERIAL LIFT AND ASME B30.5
100 percent crane and 100 percent aerial lift capacity allow the NBT40-1 Series to deliver outstanding utilization for maximum ROI, making it the ultimate tool for your fleet.

GRAPHICAL RATED CAPACITY LIMITER (RCL)
Graphical RCL simplifies setup in both crane and aerial lift modes. Aerial controls offer quick setup features, real-time feedback of operating range and automatic function slowdowns when approaching the extents of the working range.

OUTRIGGERS
Outrigger spans are 7,52 m (24.7 ft) when fully extended and 5,33 m (17.5 ft) at mid-span. Equipped with both ground level and in-cab outrigger controls, the NBT40-1 Series’ outriggers allow quick and easy crane set-up and can be positioned at 0 percent, 50 percent and 100 percent.

OPTIONS AND LIFT SOLUTIONS
• Aerial lift package
• Platform hydraulic tool circuit with pressure intensifier manifold
• Auxiliary hoist • Wind speed sensor (readout available in operator cab and aerial lift platform)
• Five-function radio remotes
• K100™ synthetic rope

JOBSITE BENEFITS
• Multiple boom options and 100 percent aerial and lifting capabilities make the NBT40-1 Series extremely versatile and boosts your ROI
• New decking and ladders for easier access
• Lighter polymeric outrigger floats are easier and lighter than traditional floats
• Ergonomic cab and radio remote controls
• Utilization enhancing options such as the 2-stage jib, personnel platforms and wireless radio remotes for optimum versatility

This configuration shows the 360° working area that is achieved with the front stabilizer (standard on the NBT45-1). Extended front rails required for SFO installation unless application without extended rails has been approved by National Crane. Note: Bare truck weights prior to installation of crane assembly for 85% stability.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
